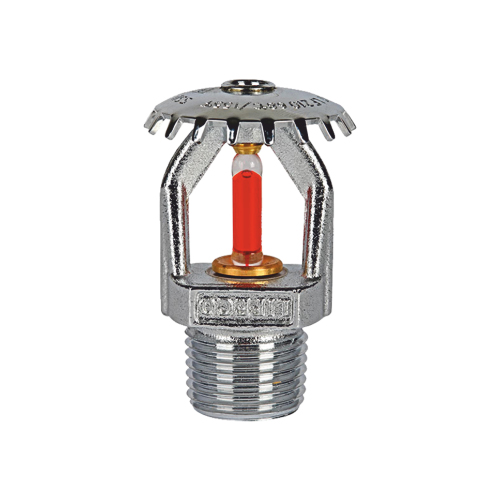

Sprinklers

Specifications

1. Design and Structure
   • Material: Typically made of high-quality materials such as brass, stainless steel, chrome-plated metal, or zinc alloy for durability, corrosion resistance, and long-term functionality.
   • Type of Sprinklers:
     • Pendant Sprinklers: Designed for ceiling installation, releasing water in a downward direction.

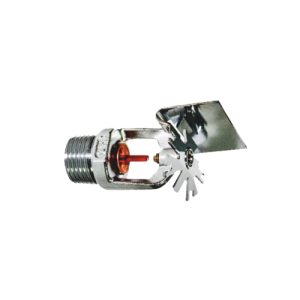

     • Sidewall Sprinklers: Mounted on walls and discharge water in a horizontal pattern.
     • Concealed Sprinklers: Hidden behind a cover that conceals the sprinkler until activation, offering a discreet and aesthetic design for commercial spaces.
     • Upright Sprinklers: Positioned above the ceiling, delivering water in an upward direction to cool the surrounding area.
   • Thread Size: Commonly available in 1/2 inch to 3/4 inch thread sizes for compatibility with various fire sprinkler systems.
2. Activation Mechanism
   • Thermal Sensitivity: Sprinklers activate when the surrounding temperature reaches a specific threshold, typically 68°C, 93°C, 141°C, or 182°C, depending on the type of sprinkler and application.
     • Glass Bulb Activation: A small glass bulb filled with liquid that expands as it heats, breaking when the set temperature is exceeded.
     • Fusible Link: A metal link that melts under heat, triggering the release of water.
   • Quick Response Time: Designed for rapid activation to ensure the sprinkler system starts delivering water to control fires before they spread.
3. Flow Rate and Water Delivery
   • Flow Rate: Flow rates typically range from 13 to 100 GPM (gallons per minute) depending on the sprinkler model and application. The flow rate is critical for ensuring adequate fire suppression.
   • Water Distribution: Sprinklers are designed to distribute water evenly across a designated area to suppress the fire. The pattern and coverage area vary depending on the type of sprinkler.
   • Coverage Area: The coverage area of a sprinkler is generally between 12 and 16 square meters (130–170 square feet), depending on the sprinkler’s design, flow rate, and installation requirements.
4. Durability and Environmental Resistance
   • Corrosion Resistance: Sprinklers are designed to withstand exposure to water, humidity, and chemicals. High-quality stainless steel or brass construction ensures long-lasting durability.
   • Temperature Tolerance: With temperature ratings ranging from 68°C to 182°C, sprinklers are built to operate in various environments, including high-risk and high-heat areas.
   • Seismic Resistance: Some sprinkler models are designed to be seismic-resistant, ensuring that they continue to function during earthquakes or other structural shifts.
5. Installation and Maintenance
   • Easy Installation: Sprinklers are designed for quick installation into fire suppression systems, with standard connections like NPT (National Pipe Thread) threads, compatible with various pipes and fittings.
   • Minimal Maintenance: Sprinklers are low-maintenance once installed. Routine inspections, testing, and cleaning are required to ensure that sprinklers remain in optimal working condition.
   • Inspection Frequency: Regular visual inspections and annual functional testing are recommended to ensure the sprinkler system is operational, especially the heat-sensitive element (bulb or fusible link).
   • Flush and Flow Testing: Sprinklers should undergo regular testing for water flow and proper activation during system maintenance.
6. Compliance and Standards
   • UL Listed: Most sprinkler models are UL Listed, meeting the standards set by Underwriters Laboratories for safety and reliability in fire protection systems.
   • FM Approved: Some sprinklers are approved by Factory Mutual (FM), ensuring they meet rigorous standards for fire suppression.
   • NFPA Compliant: Sprinklers conform to NFPA 13 standards, which outline the proper design, installation, and maintenance of fire sprinkler systems.
   • EN 12259: European standard compliance for sprinkler heads, ensuring the sprinkler systems meet international fire protection requirements.
7. Applications
   • Residential: Installed in homes, apartments, and residential complexes to ensure fire safety for occupants.
   • Commercial: Used in office buildings, shopping centers, and schools to protect against fire hazards and ensure the safety of employees and customers.
   • Industrial: Common in manufacturing plants, warehouses, and factories where fire risks are higher due to the presence of machinery, chemicals, and flammable materials.
   • Data Centers: Protects critical infrastructure like data centers and server rooms, where fire suppression is critical to safeguard technology and prevent costly data loss.
   • Hospitals and Healthcare Facilities: Sprinklers help protect sensitive areas like hospitals, nursing homes, and medical facilities to ensure the safety of patients and staff in case of fire.
