Specifications
- Type of Hydrants
- Underground Hydrants: Installed below ground level, ideal for locations where space is limited or freezing conditions are a concern.

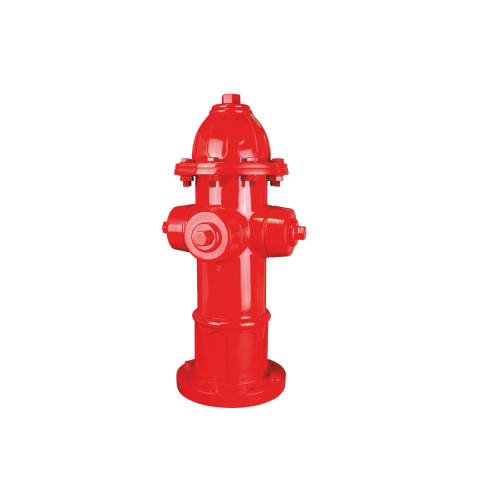

- Pillar Hydrants (Above-Ground): Visible, easy-to-access hydrants commonly used in urban and industrial areas.
- Material
- Body: Cast Iron, Ductile Iron, or Stainless Steel for strength and corrosion resistance.
- Internal Components: Bronze, Gunmetal, or Brass for durability.
- Coating: Epoxy powder-coated for weather resistance and enhanced durability.
- Inlet and Outlet Connections
- Inlet Size: Standard sizes include 2.5 inches and 4 inches, compatible with flanged or threaded connections.
- Outlet: Typically features one to three outlets, compatible with standard fire hoses.
- Working Pressure
- Designed for normal operating pressure of 10-16 bar.
- Tested for high-pressure conditions up to 20 bar to ensure reliability.
- Flow Rate
- Provides a high flow rate ranging from 900 L/min to 2,500 L/min (liters per minute), depending on the model and application.
- Valve Types
- Gate Valve: Commonly used for underground hydrants for robust flow control.
- Ball Valve or Butterfly Valve for smoother operation in pillar hydrants.
- Standards and Certifications
- Compliant with IS 13039, EN 14384, NFPA 24, and other international fire hydrant standards.
- Approved by UL, FM, or local fire safety authorities.
- Mounting and Installation
- Underground Hydrants: Installed below surface with a suitable valve box.
- Pillar Hydrants: Fixed above ground with a flanged base for stability.
- Designed for easy connection to municipal water supply systems or dedicated fire pumps.
- Drainage System
- Equipped with self-draining mechanisms to prevent water stagnation and freezing in cold climates.
- Applications
- Urban Fire Safety: Streets, parks, and residential areas.
- Industrial Fire Protection: Factories, refineries, and warehouses.
- Commercial Buildings: Shopping malls, hospitals, and office complexes.
- Remote Locations: Airports, ports, and large outdoor facilities.
- Color and Visibility
- Standard fire engine red, yellow, or customized colors for enhanced visibility.
- Reflective markers or signage for easy identification.
- Accessories
- Hose Couplings: Compatible with fire hoses.
- Hydrant Wrenches: For opening and closing valves.
- Pressure Gauges: To monitor water pressure during operation.
