Specifications
- Types of Gas Fire Suppression Systems
- Inert Gas Systems: These systems use naturally occurring gases such as nitrogen, argon, and carbon dioxide to reduce the oxygen concentration in the protected area to a level that suffocates the fire without damaging equipment.
- Common Gases: IG-541 (Inergen), IG-55, IG-100, and CO2.
- Chemical Gas Systems: These systems utilize clean agent chemicals to extinguish fires by disrupting the chemical reactions in the fire triangle.
- Common Agents: FM-200, Novec 1230, HFC-227ea, and FM-200 are widely used for electrical fire suppression.
- Inert Gas Systems: These systems use naturally occurring gases such as nitrogen, argon, and carbon dioxide to reduce the oxygen concentration in the protected area to a level that suffocates the fire without damaging equipment.
- Operating Principles
- Oxygen Reduction: Inert gas systems work by reducing oxygen levels in the protected area, typically to 12-14%, which is insufficient to sustain combustion. This suppression method is effective for environments with high-value equipment.
- Chemical Interruption: Chemical gas systems use agents to interfere with the fire’s chemical reaction. These systems do not lower oxygen levels, making them safe for occupied spaces, such as data centers and server rooms.
- Total Flooding System: Gas fire suppression systems are designed as total flooding systems, meaning the agent is discharged throughout the entire protected area, creating an effective and consistent level of suppression.
- Activation and Control
- Automatic Detection: Gas fire suppression systems are equipped with advanced fire detection sensors, including smoke detectors, heat detectors, and flame detectors. These sensors automatically trigger the gas discharge when a fire is detected.
- Manual Override: While the system is usually automatic, manual activation via control panels is also available in case of system failure or maintenance.
- Deluge Valve: A deluge valve or solenoid valve is used to release the extinguishing agent once the detection system signals a fire. These valves are triggered either by automatic sensors or manual activation.
- System Components

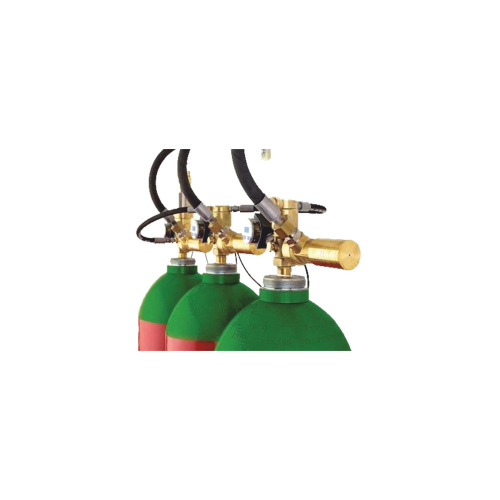

- Agent Storage: Gas agents are stored in high-pressure cylinders or tank banks. The quantity of stored agent depends on the volume of the protected area, the size of the fire hazard, and the chosen agent.
- Distribution Network: The agent is distributed through a network of pipes and nozzles. These nozzles are carefully positioned to ensure even and effective distribution of the agent throughout the room or facility.
- Control Panel: The control panel acts as the brain of the system, integrating fire detection, gas release mechanisms, alarms, and backup systems. It provides real-time data on system status and performance.
- Design and Coverage Area
- Room Design and Size: Gas fire suppression systems are designed to protect specific areas based on their size and fire load. The protected area should be sealed to prevent the rapid escape of gas agents.
- Coverage Capacity: The system is designed to protect volumes ranging from small rooms (50m³) to large spaces (over 1000m³), with gas discharge rates calibrated to ensure effective suppression.
- Environmental and Safety Considerations
- Eco-Friendly Options: Many modern gas suppression systems use environmentally friendly agents, such as FM-200 and Novec 1230, which have low global warming potential (GWP) and are non-ozone-depleting.
- Occupant Safety: Inert gas systems reduce oxygen levels, but are generally safe for unoccupied spaces. For occupied spaces, chemical systems are used, which suppress fires without significantly altering oxygen levels, ensuring the safety of occupants.
- Compliance with Standards: Gas fire suppression systems comply with international standards, including NFPA 2001 (Standard on Clean Agent Fire Extinguishing Systems), ISO 14520, and BS EN 15004.
- Maintenance and Testing
- Regular Inspections: Regular maintenance is crucial to ensure proper functionality. This includes inspecting cylinders, nozzles, pipes, and control systems.
- System Recharging: Following agent discharge, the system requires recharging to restore the stored agent levels. This ensures the system is ready for future use.
- Pressure Tests: Periodic pressure testing of the cylinders and piping system is necessary to ensure the system is operating under optimal conditions.
- Sensor Calibration: Sensors need to be tested and calibrated regularly to ensure quick and accurate fire detection.
