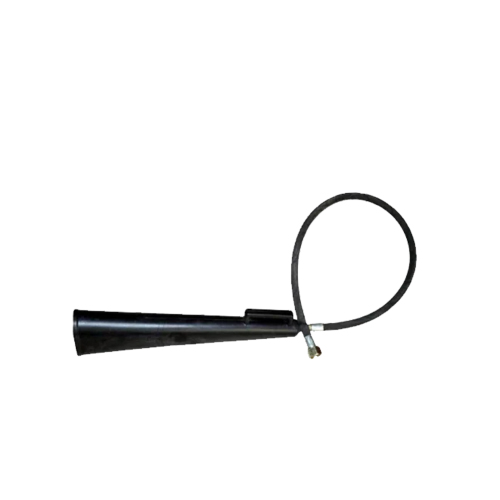

Co2 HOSE PIPE

Specifications

1. Material
   • Reinforced Rubber or PVC: Strong, durable, and resistant to wear, abrasion, and high pressure.
   • Stainless Steel Braid (for higher pressure ratings): Additional reinforcement for extra durability and pressure resistance.
2. Diameter and Length
   • Inner Diameter: Typically 6mm, 8mm, 10mm, 12mm, 16mm, depending on the application.
   • Length: Available in 1m to 30m or custom lengths to suit specific setups.
3. Pressure Rating
   • Operating pressure: Up to 2000 psi (depending on material and size).
   • Burst pressure: 2-3 times the operating pressure, ensuring safety during high-pressure conditions.
4. Temperature Range
   • Operating temperature: -20°C to +70°C (-4°F to 158°F).
   • Designed to maintain performance across a wide range of environmental conditions.
5. Construction Features
   • High Flexibility: Designed for ease of movement without kinking or cracking.
   • Abrasion-Resistant Outer Layer: Protects the hose from wear and environmental damage.
   • UV-Resistant: UV-stabilized for use in outdoor environments without degradation.
6. Fittings and Connectors
   • Standard Fittings: Includes CGA 320, DIN, BSP, or NPT connectors for compatibility with CO₂ cylinders and equipment.
   • Quick Connect/Disconnect Options: For easy attachment and removal of the hose from CO₂ systems.
7. Applications
   • Fire Suppression Systems: Used in CO₂ fire extinguishers and suppression systems.
   • Beverage Dispensing: Connects CO₂ tanks to soda machines and beer dispensers.
   • Pneumatic Equipment: Transfers CO₂ to tools and machinery requiring pressurized gas.
   • Diving Equipment: Used for CO₂-powered systems in scuba diving and other underwater applications.
8. Safety Features
   • Anti-Static: Prevents static buildup that could lead to sparks or explosions.
   • Crush-Resistant: Reinforced structure to prevent accidental damage from external pressure or impact.
9. Compliance and Standards
   • ISO 9001 and EN 559 certified.
   • Complies with UL and CSA standards for industrial gas hoses.
10. Maintenance
    • Easy to Clean: Resistant to oil, grease, and general contaminants.
    • Long Life: Durable construction ensures longevity even with frequent use.
